Experience year-round comfort with this mini split air conditioner. This mini split AC & heat pump system offers cooling and heating capacities of 24000 BTU, suitable for areas up to 1200 sq. ft. Its outdoor unit includes a chassis electrical heating system that helps it work stably in temperatures from 5℉ to 126℉. The inverter technology optimizes compressor performance and achieves an 18.1 SEER2 rating. The WiFi connectivity enables you to control the AC via your phone or voice commands, while the handy remote control provides easy manual adjustments. 7 modes and 6 fan speeds allow customization, complemented by features like 4D auto swing, child lock, and a 24-hour timer. The sleep mode and ultra quiet operation ensure restful nights. Additionally, maintenance is simplified with a self-cleaning function and washable filters.
Features:
Powerful cooling and heating for rooms up to 1200 sq.ft
Seamlessly control your comfort from anywhere with WiFi connectivity
Inverter technology and R32 refrigerant offer high efficiency
4D airflow to achieve uniform and comfortable indoor air circulation
7 operational modes and 6 wind speeds allow customized comfort
24H timer, remote control and child lock for added convenience
Built-in chassis heating for long-lasting performance
Cool even at 126℉, heat even at 5℉
Relax in peaceful quietness with low-noise operation
Self-cleaning function ensures easy maintenance
Filter are easy to remove and clean
Color: White
Material: Cold-rolled Steel Sheet, Copper, Aluminum
Indoor Unit Dimensions: 43.3” x 9.1” x 12.6”/110 x 23 x 32 cm (L x W x H)
Outdoor Unit Dimensions: 32.2” x 11.6” x 23.6”/81.8 x 29.5 x 60 cm (L x W x H)
Voltage: 208/230V
Frequency: 60Hz
Cooling Capacity: 24000 BTU
Heating Capacity: 24000 BTU
Cooling Power: 2160W
Heating Power: 1998W
Coverage Area: 1200 Sq.Ft/50㎡
Air Flow Volume: 589 CFM/1000 m³/h
Dehumidifying Capacity: 66 Pints/Day (31.2 L/Day)
Temperature Setting Range: 60℉~90℉/16℃~32℃
Max Remote Control Distance: 26 ft/8 m
Refrigerant: R32
SEER2: 18.1
HSPF2: 8.2
Indoor Noise Level: 23 dB
Diameter of Gas Pipe: 5/8" (15.88 mm)
Diameter of Liquid Pipe: 1/4" (6.35 mm)
Net Weight of Indoor Unit: 27.6 lbs/12.5 kg
Net Weight of Outdoor Unit: 76.1 lbs/34.5 kg

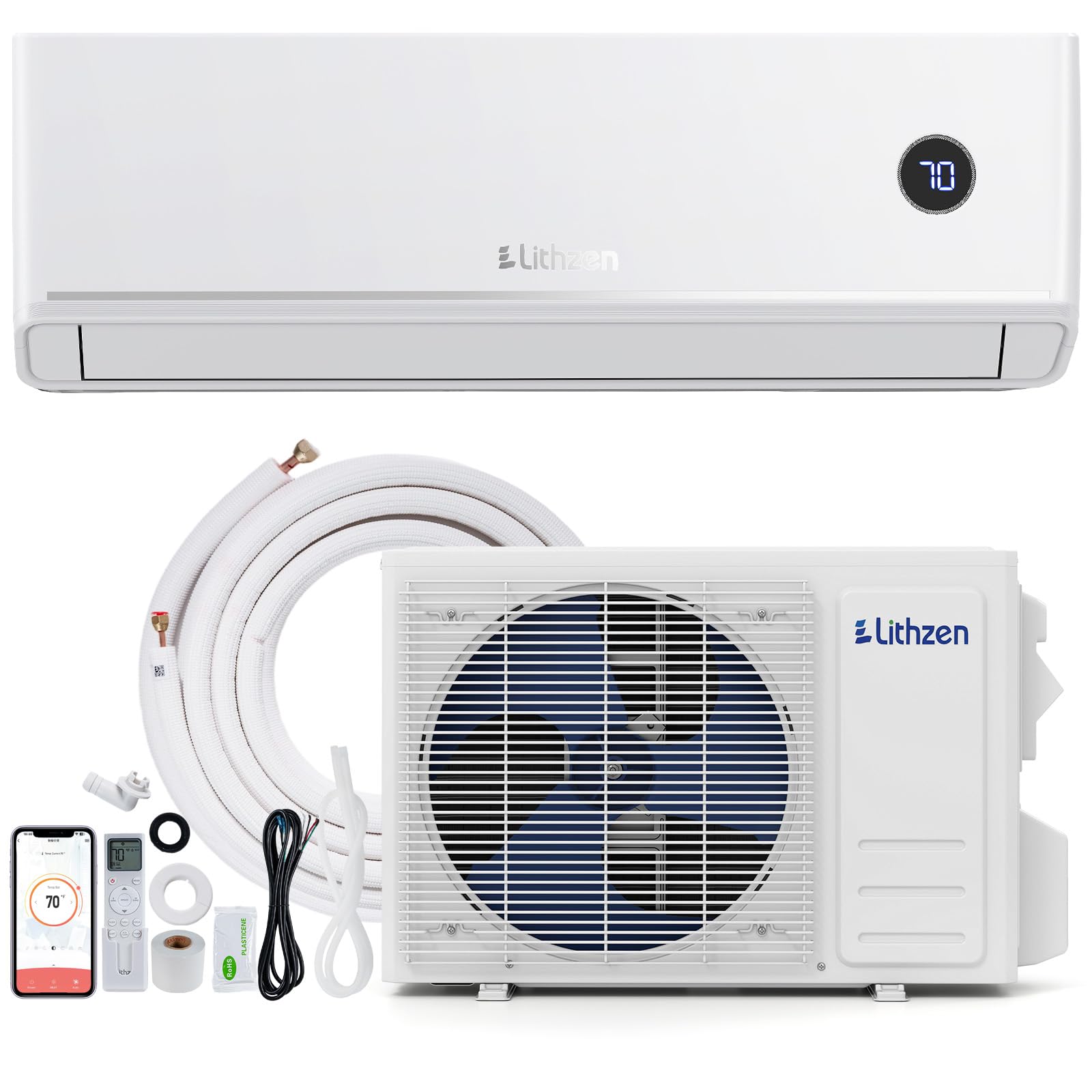

Package Includes:
1 x Indoor Unit
1 x Outdoor Unit
1 x 4m/13ft Copper Connection Pipe - Liquid Pipe
1 x 4m/13ft Copper Connection Pipe - Gas Pipe
1 x 4.5m/15ft Communication Wire
1 x 2 m/6.5 ft Drain Pipe
1 x Remote Control
1 x Remote Control Holder
1 x Drain Nozzle
1 x Wall Cap
1 x Tape
1 x Putty
1 x User Guide
