Description:
Enjoy all-season comfort with this 3 Zone 27000 BTU mini split air conditioner. This tri-zone energy efficient inverter split AC uses R454B refrigerant, supporting strong heating and cooling with lower energy waste. Built for demanding climates, the outdoor unit with chassis electrical heating cools even at 55℃/131℉, and heats even at -25℃/-13℉. It supports smart control via built-in WiFi, enabling operation through the app, included remote, or voice commands using Alexa and Google Assistant. You can choose from 7 modes and 8 fan speeds to suit changing seasons and comfort preferences. The 24-hour timer, 4D airflow, quiet operation and self-clean function enhance daily convenience.
Features:
7 operating modes and 8 fan speeds to suit your comfort needs
High energy efficiency with inverter technology and R454B refrigerant
Chassis electrical heating promises consistent performance
Convenient control via smartphone app, remote, or voice commands
Sleep mode for peaceful nights alongside screen off function
24-hour timer for effortless scheduling while saving energy
4D swing ensures even air distribution for added comfort
Removable and washable filter for easy cleaning
Self-clean function maintains fresher airflow over time
Child lock to prevent accidental changes to settings
Certified by Energy Star
Specifications:
Color: White
Material: Cold-rolled Steel Sheet, Copper, Aluminum
Indoor Unit Dimensions:
9K: 32.28” x 7.68” x 12.05”/82 x 19.5 x 30.6 cm (L x W x H)
12K: 36.22” x 7.68” x 12.05”/92 x 19.5 x 30.6 cm (L x W x H)
18K: 43.19" x 8.74" x 13.07"/109.7 x 22.2 x 33.2 cm (L x W x H)
24K: 43.19" x 8.74" x 13.07"/109.7 x 22.2 x 33.2 cm (L x W x H)
Outdoor Unit Dimensions: 38.5" x 16.57" x 31.61"/97.8 x 42.1 x 80.3 cm (L x W x H)
Multi Zone Combination: 3
Voltage: 208/230V
Frequency: 60Hz
Temperature Setting Range: 60℉~88℉/16℃~31℃
Refrigerant: R454B
Indoor Unit Noise Level: 30 dB
Max Remote Control Distance: 26 ft/8 m
Coverage Area: 1400 sq.ft./130㎡
Dehumidification Capacity:
9k: 55.8 Pints/Day (26.4 L/Day)
12k: 81.2 Pints/Day (38.4 L/Day)
18k: 111.6 Pints/Day (52.8 L/Day)
24k: 131.9 Pints/Day (62.4 L/Day)
Maximum Air Flow Volume:
9k: 326 CFM/554 m³/h
12k: 500 CFM/850 m³/h
18k: 735 CFM/1250 m³/h
24k: 735 CFM/1250 m³/h
SEER2:24
HSPF2: 10.5
Diameter of Liquid Pipe: 1/4" (6.35 mm)
Diameter of Gas Pipe:
9k: 3/8" (9.52 mm)
12k: 3/8" (9.52 mm)
18k: 1/2" (12.7 mm)
24k: 5/8" (15.88 mm)
Net Weight: 119 lbs/54 kg

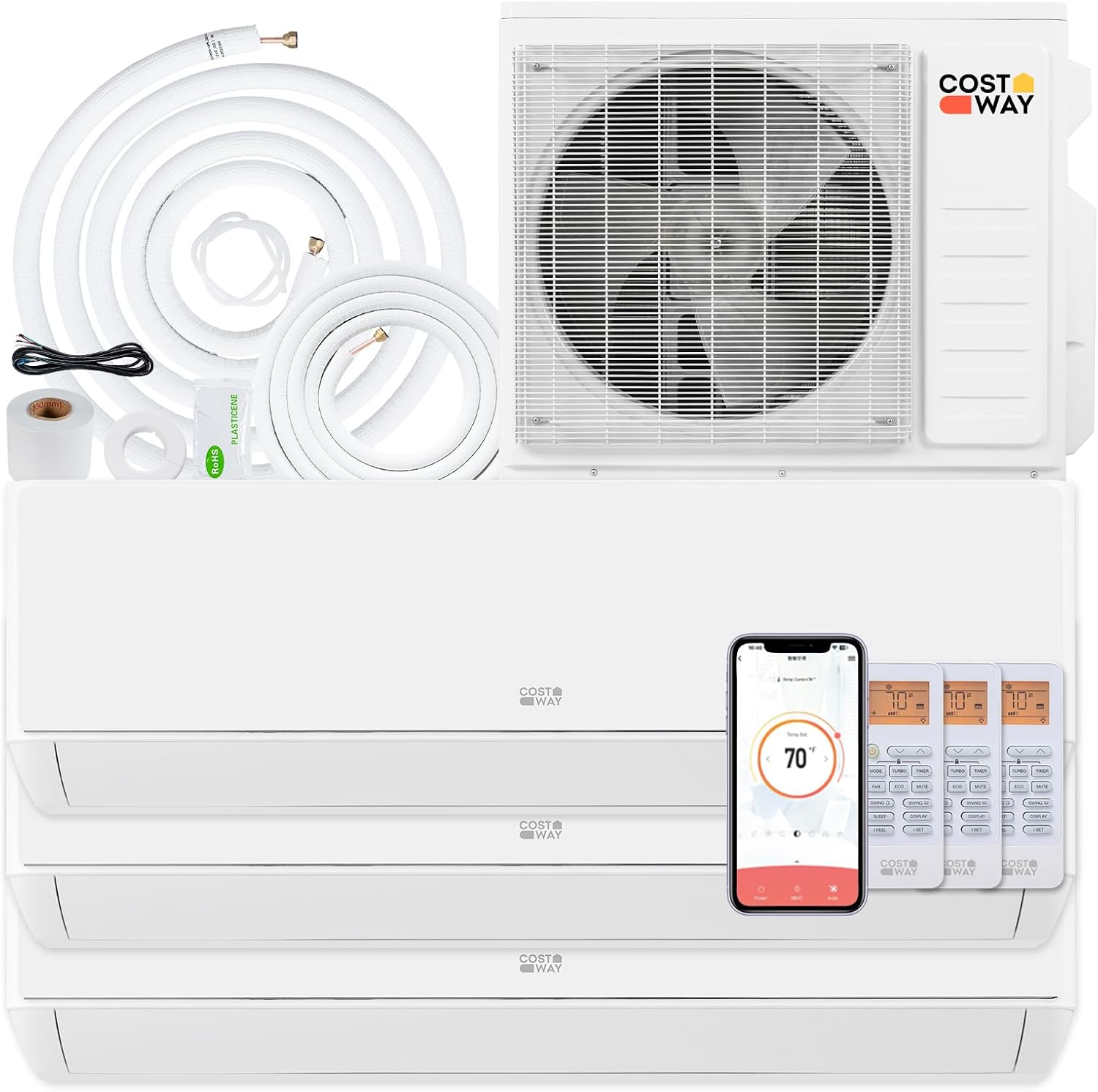

Package Includes:
1 x Outdoor Unit
3 x Indoor Unit
3 x Copper Connection Pipe - Gas Pipe
3 x Copper Connection Pipe - Liquid Pipe
3 x Communication Wire
3 x Drain Hose
3 x Remote Control & Holder
3 x Wall Sleeve
6 x Wall Cap
6 x Tape
6 x Putty
3 x Screw Kit
4 x Mounting Foot Pad
5 x User Guide
