Description:

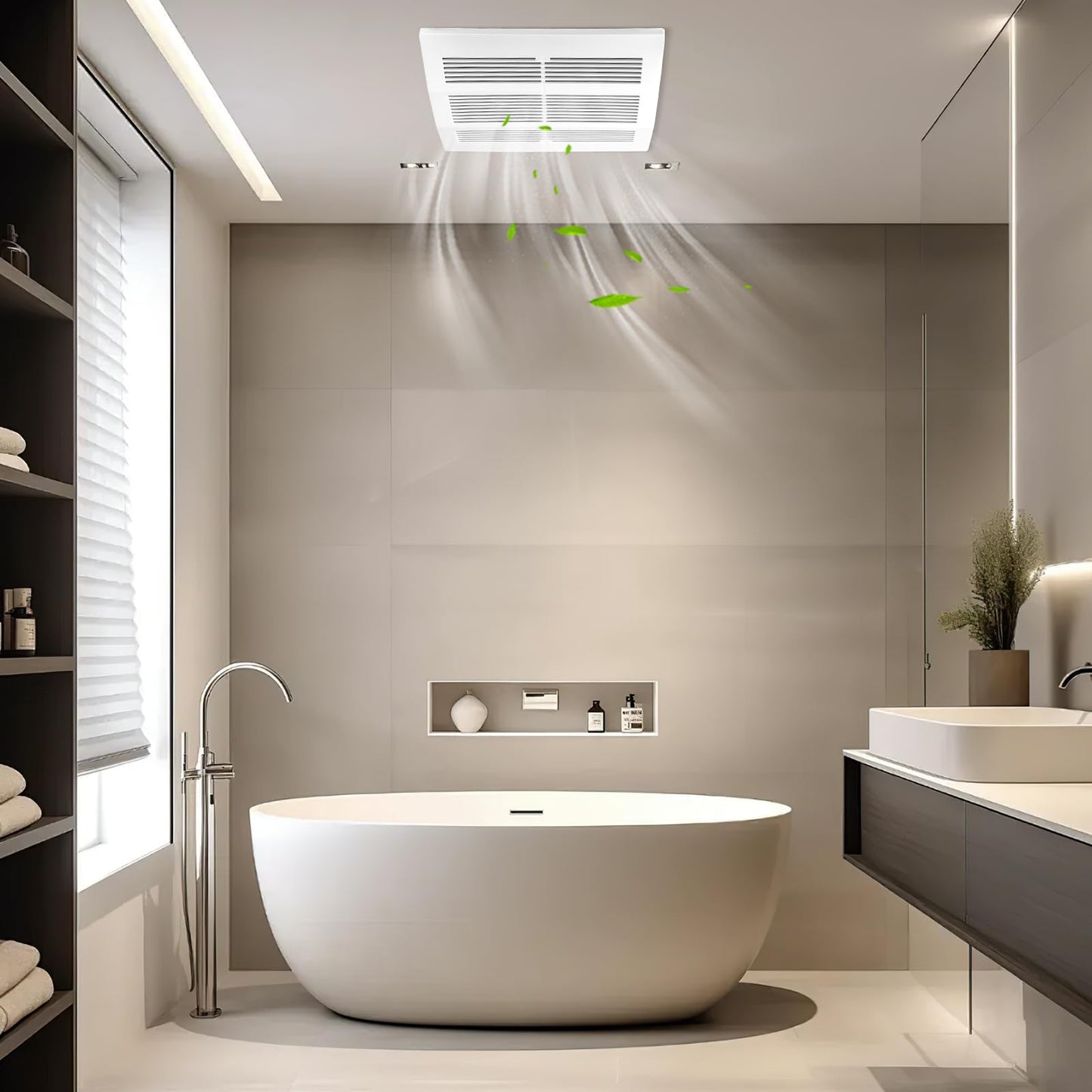

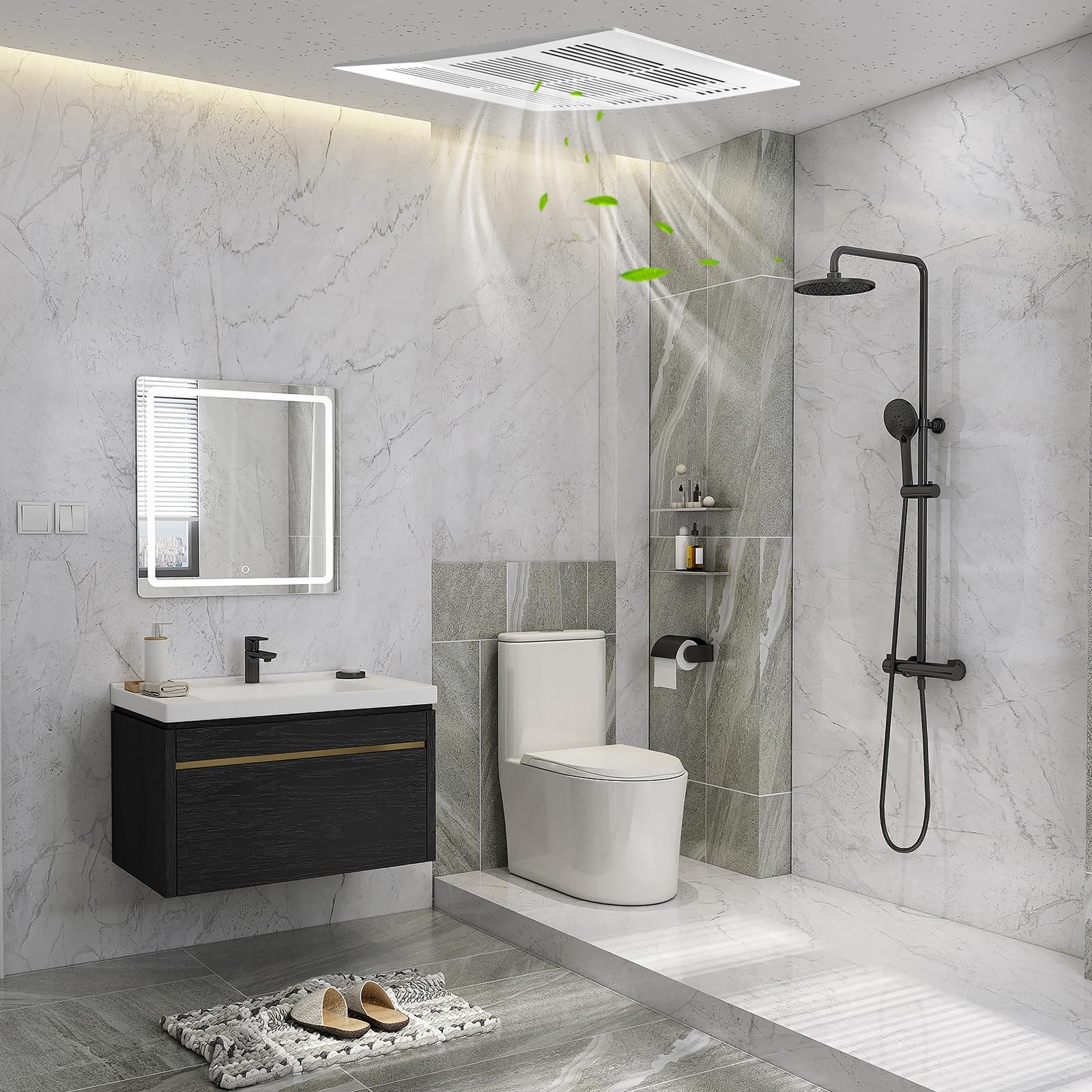

Make life more comfortable with our ceiling mount ventilation fan!

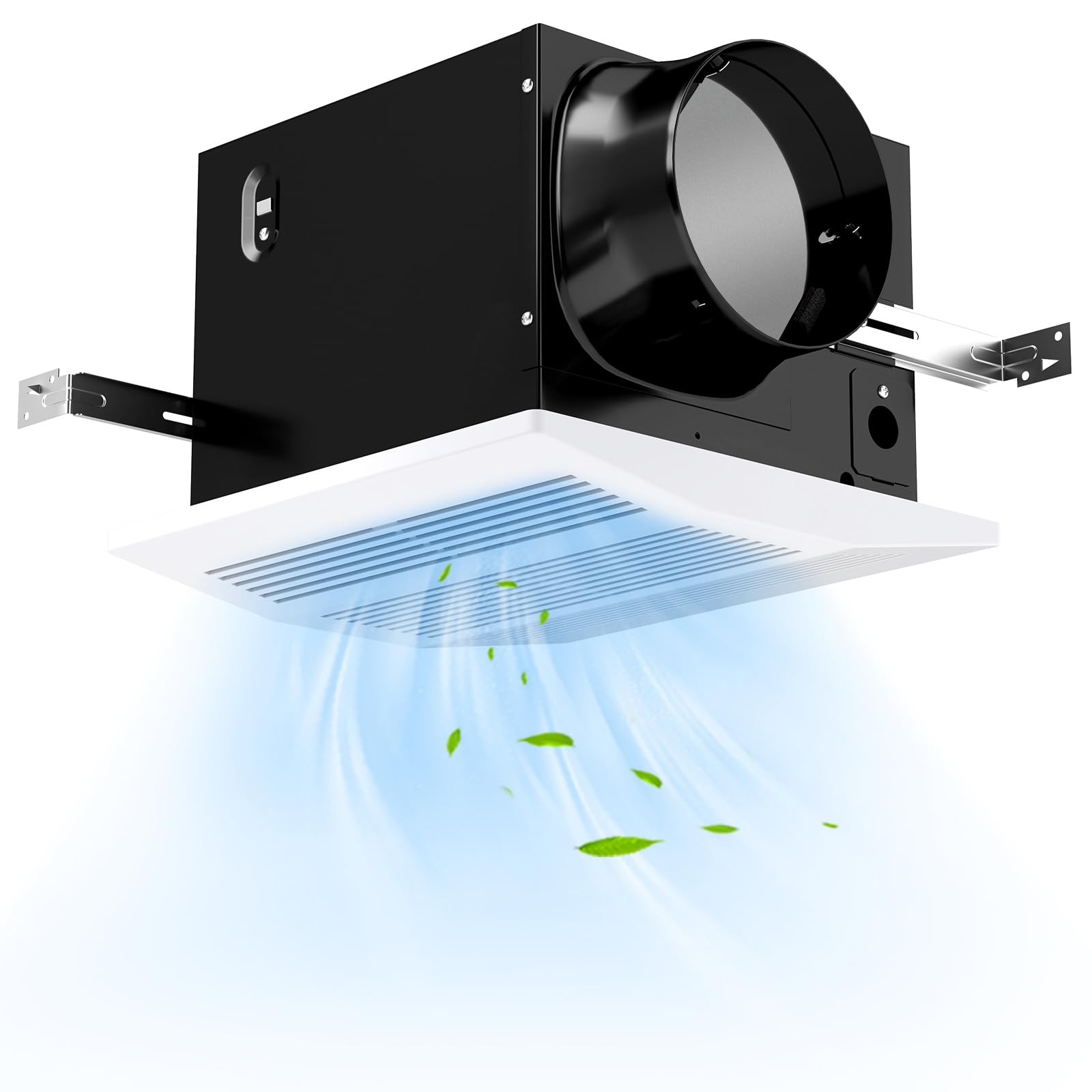

This ceiling-mounted exhaust ventilation fan operates at 200 CFM and 2 sones, ensuring effective and quiet air movement in your bathroom environment. Constructed with a sturdy spraying metal fan housing and ABS fan grille, this bathroom fan is built to last. The thoughtful check valve design prevents backdrafts, keeping your bathroom environment consistently fresh. What's more, there are 2 installation options for you to choose from: direct joist mounting or suspension bracket mounting.
Feature:

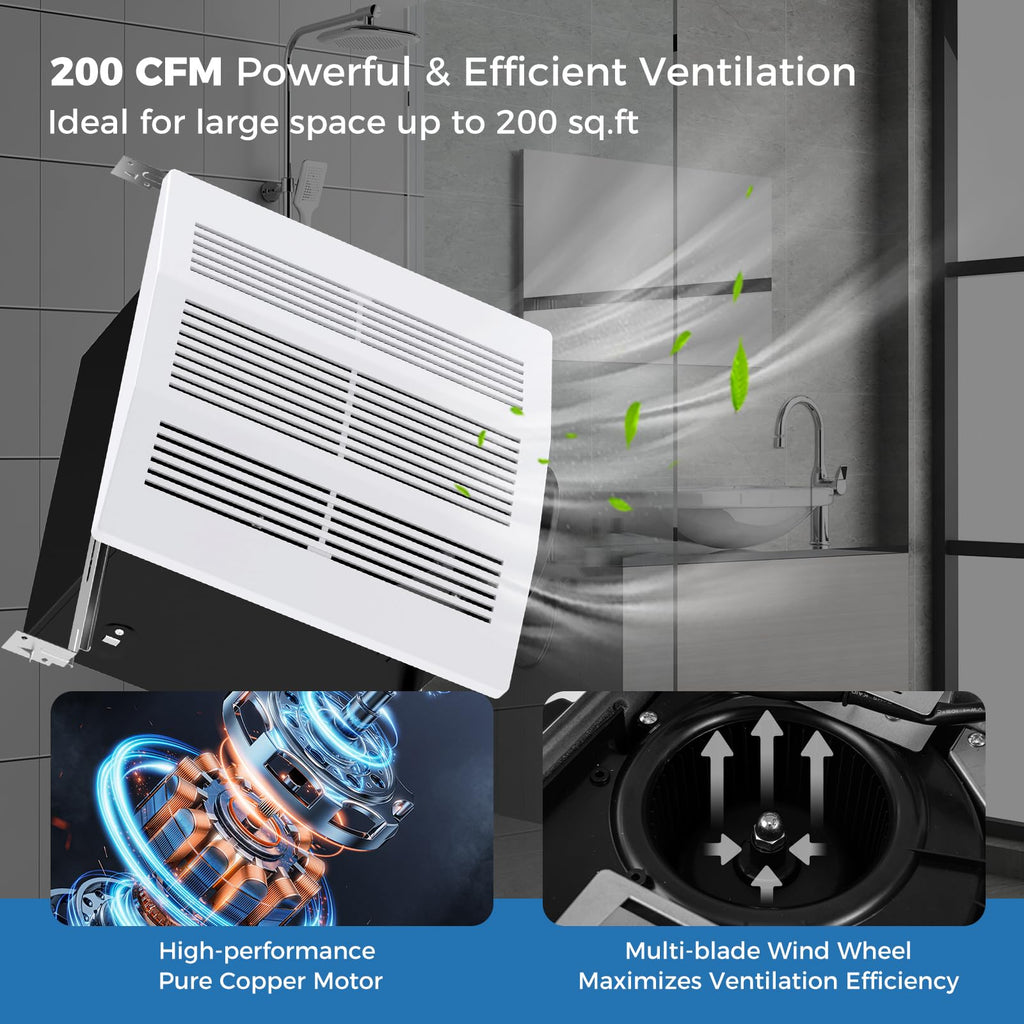

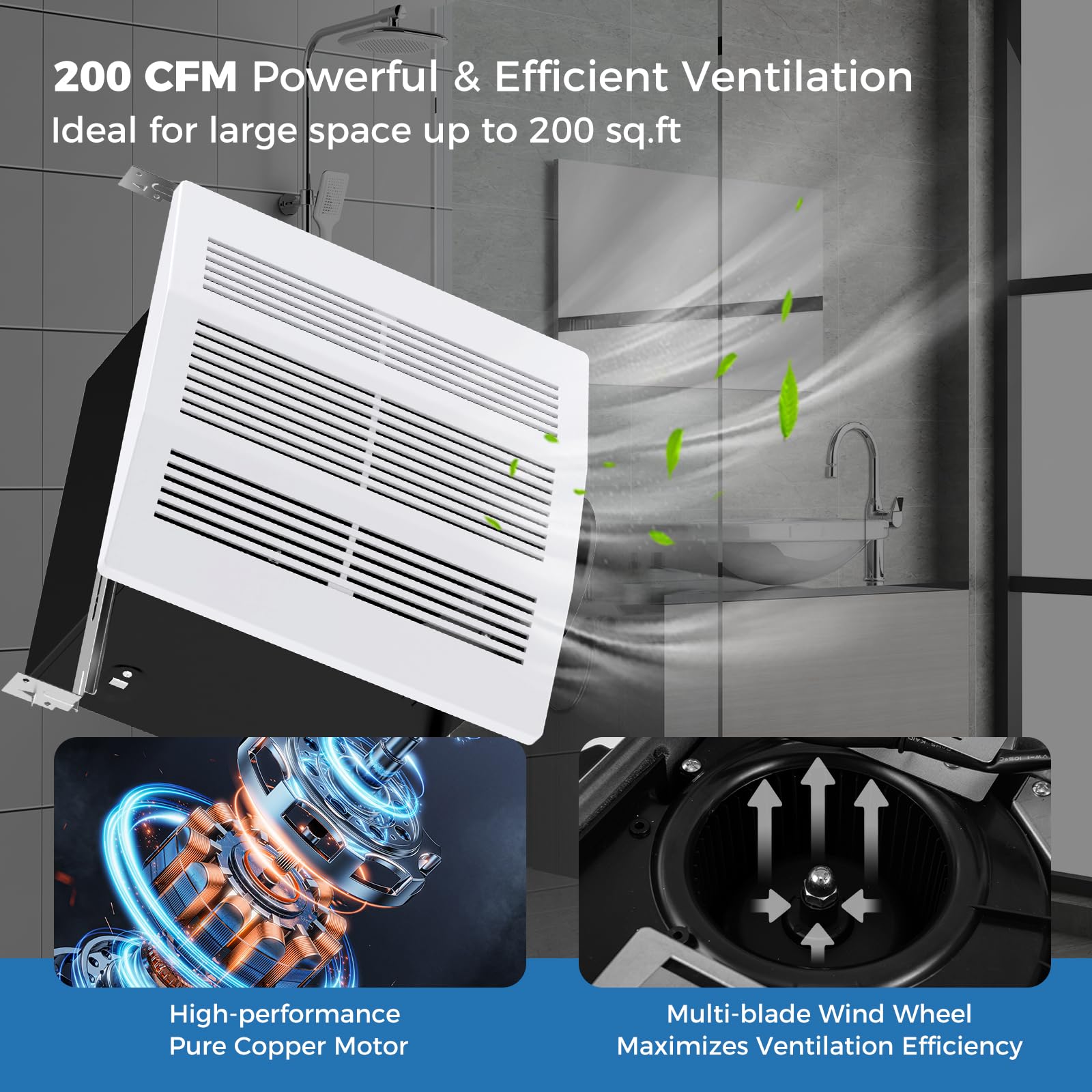

200 CFM large airflow capacity for enclosed room up to 200 sq. ft
2 sones low noise won't disrupt the tranquility of your bathroom

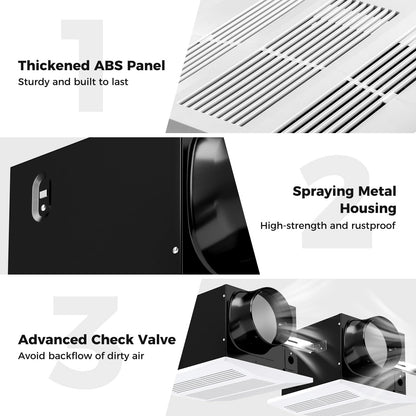

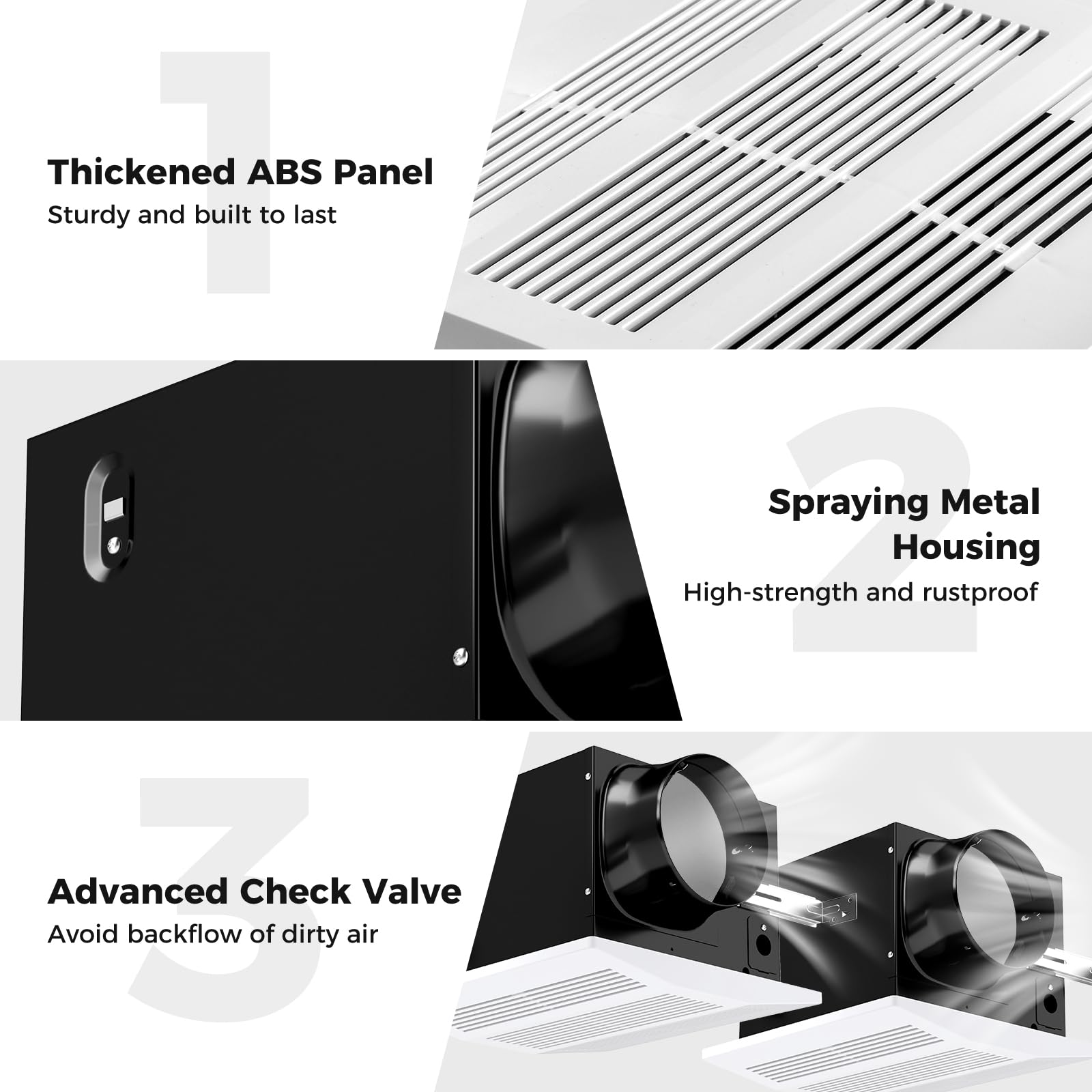

Spraying metal housing for longevity and continued performance
Multi-blade wind wheel maximizes ventilation efficiency
Advanced check valve to avoid backflow of dirty air

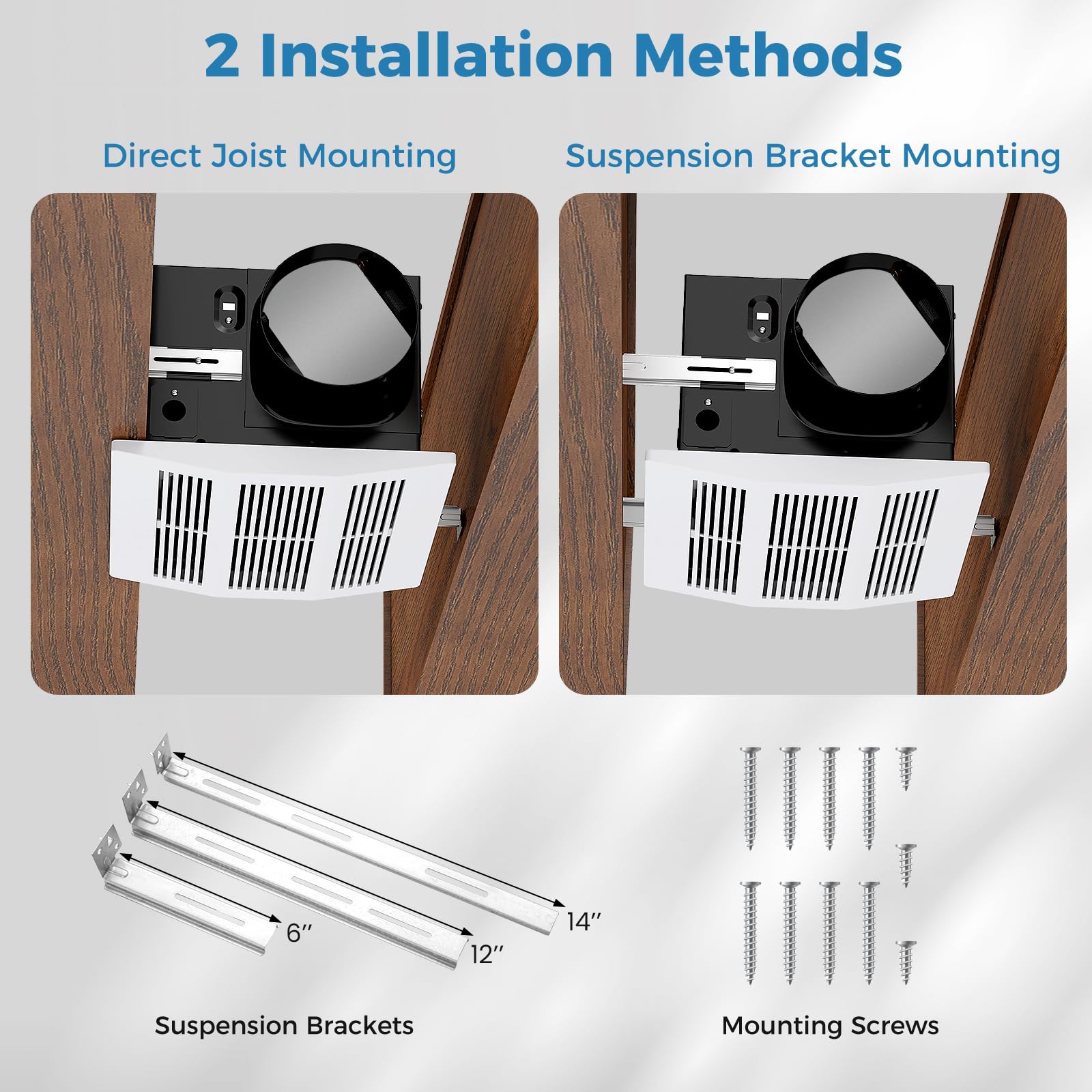

2 ways to install: direct joist mounting or suspension bracket mounting

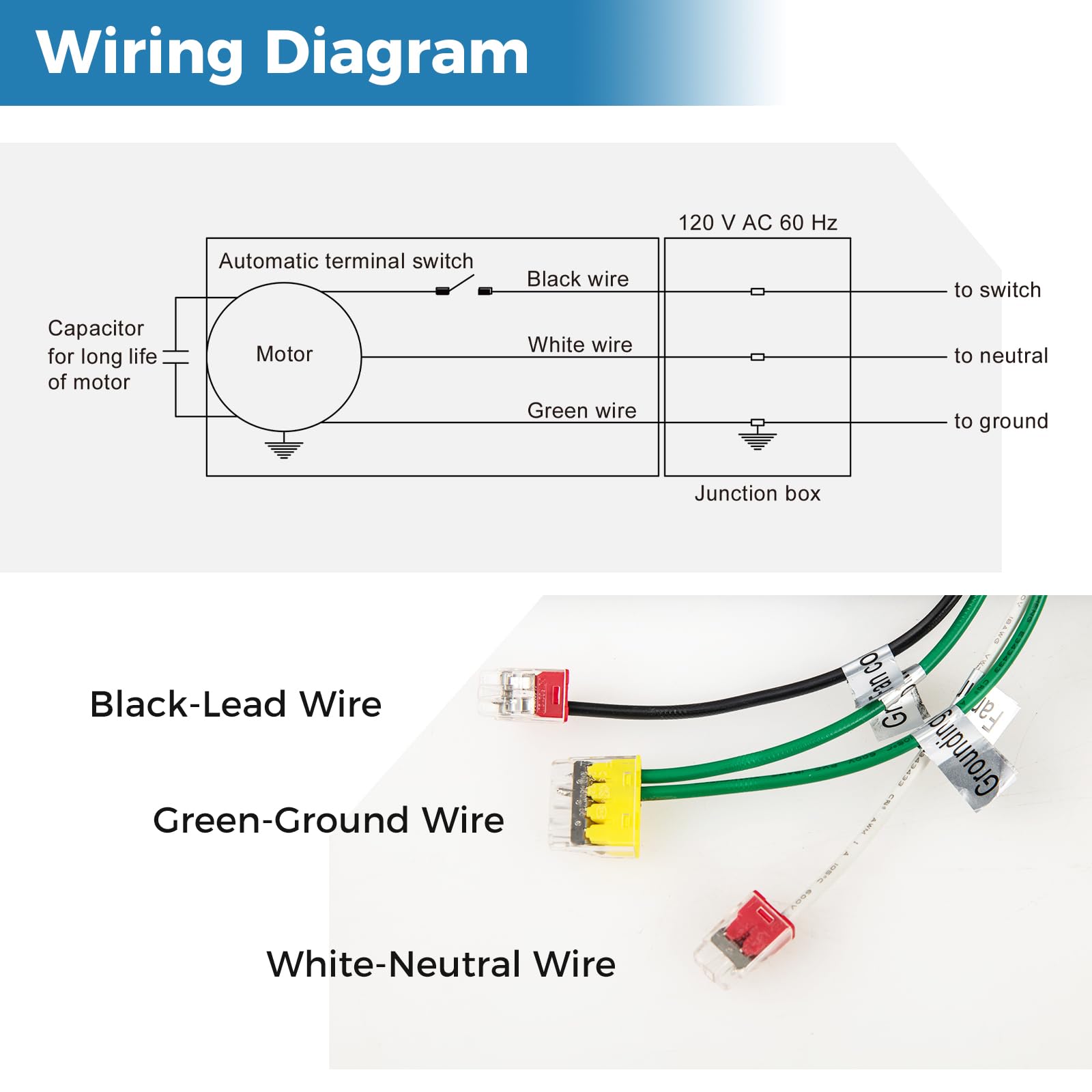

Wiring diagram: black-lead wire, green-ground wire, white-neutral wire
Specification:
Color of Fan Grille: White
Material: Metal, ABS, Copper Motor

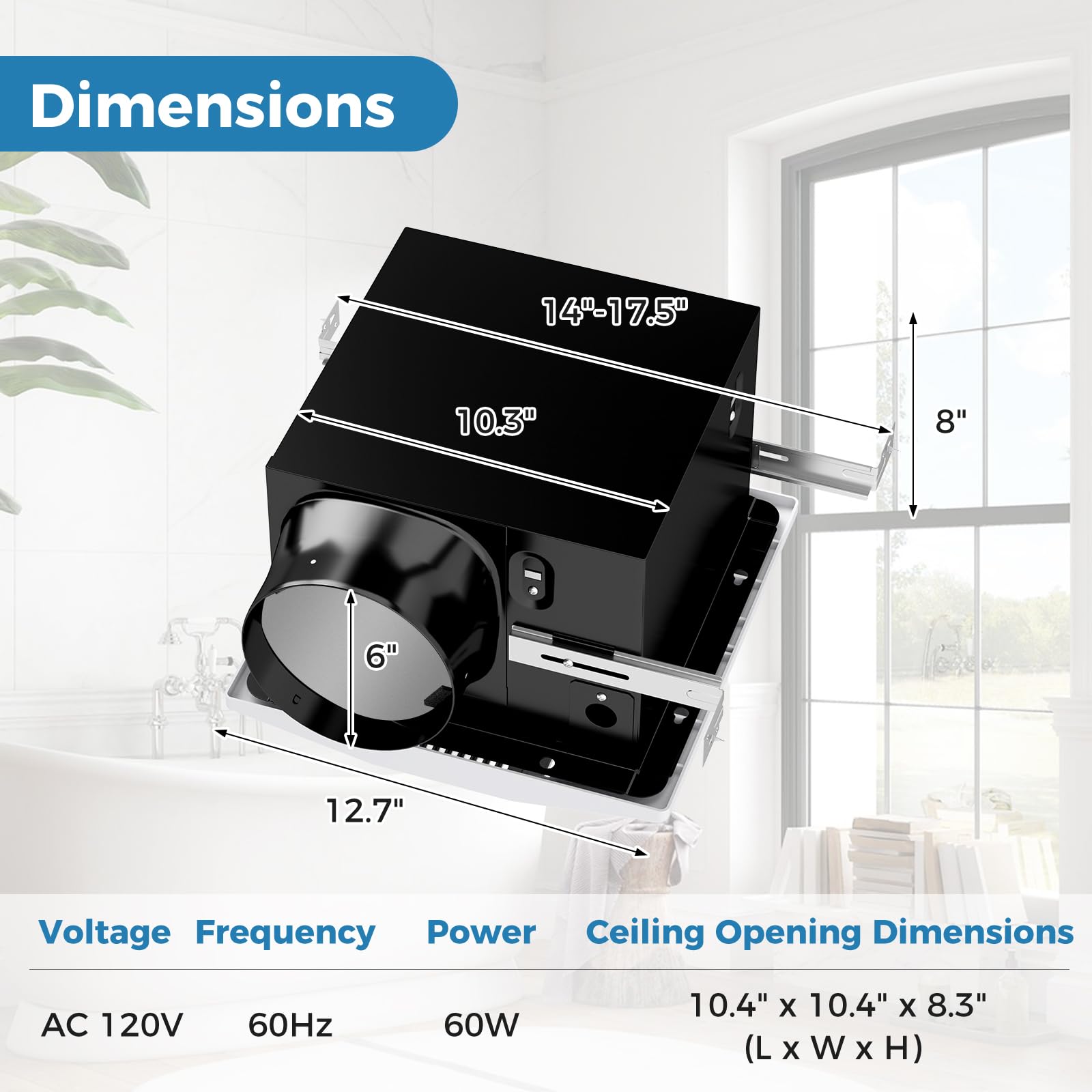

Overall Dimensions: 14.3" x 12.7" x 9" (L x W)
Fan Housing Dimensions: 10.3" x 10.3" x 8" (L x W x H)
Fan Grille Dimensions: 12.7" x 12.7" (L x W)
Duct Diameter: 6"
Bracket Length: 14", 12", 6"
Ceiling Opening Dimensions: 10.4" x 10.4" x 8.3" (L x W x H)
Voltage: AC 120V
Frequency: 60Hz
Power: 60W
Airflow: 200 CFM
Motor Speed: 700 RPM
Sound Output: 2 Sones
Coverage: 200 Sq.Ft
Net Weight: 10.5 lbs/4.8 kg
Package Includes:
1 x Ventilation Fan
1 x Instruction
