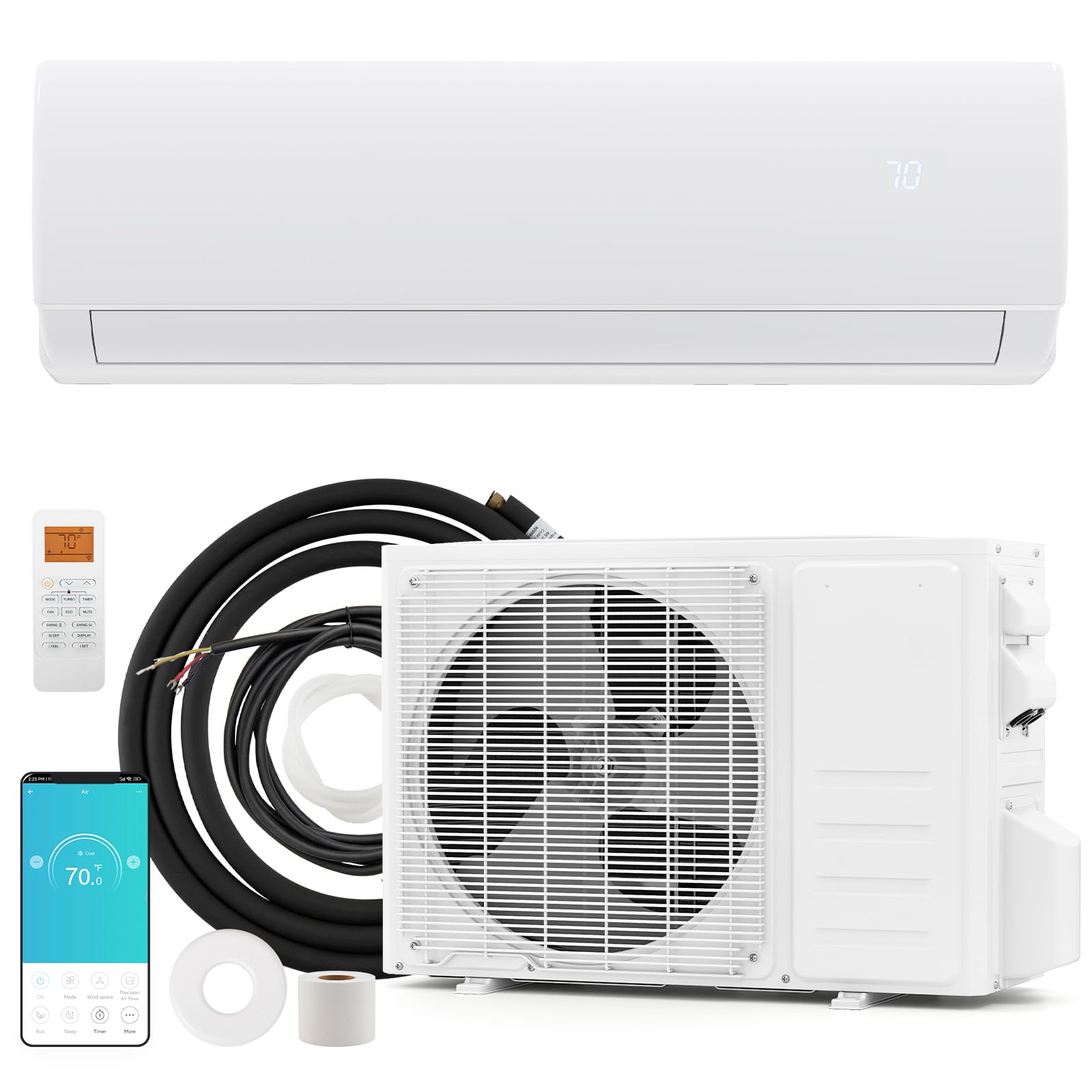

11500/17000/23000 BTU Mini Split Air Conditioner w/Installation Kit

Description:
Experience ultimate temperature control in your space with this mini split AC. This 11500 BTU mini split air conditioner boasts 7 modes and 7 fan speeds, offering flexibility to keep areas up to 750 sq. ft. comfortably managed across various seasons. Featuring a 17 SEER2 rating and R32 refrigerant, this inverter AC unit aims to reduce energy costs and global warming potential. Thanks to the Wifi enabled design, you can effortlessly control your AC via the smartphone or voice commands through Alexa or Google Assistant. Besides, this mini split air conditioner and heater features a quiet sleep mode, 24-hour timer, 4D auto swing and handy remote control for convenient use.

Please note that the installation requires a Licensed HVAC Installer.

Features:
Multifunctional design includes cooling, heating, drying and fan
Powerful cooling & heating for rooms up to 750/1250/1500 sq.ft
Effortless control via your smartphone/voice/remote control
7 fan speeds: auto/low/low-mid/mid/mid-high/high/turbo
Inverter technology ensures energy-efficient operation
Removable & washable filter for hassle-free maintenance

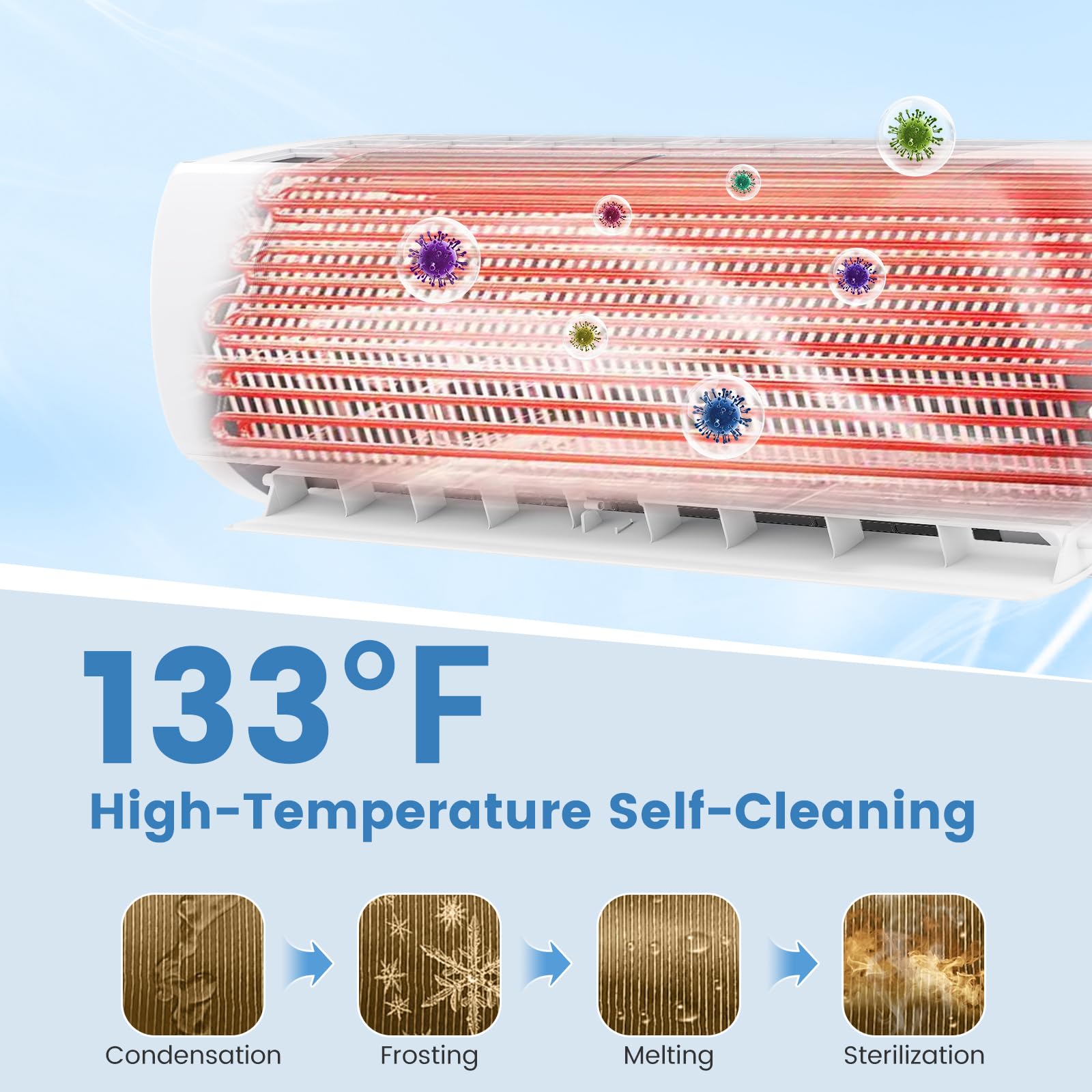

Humanized design such as child lock and self-cleaning
R32 refrigerant boasts a lower environmental impact

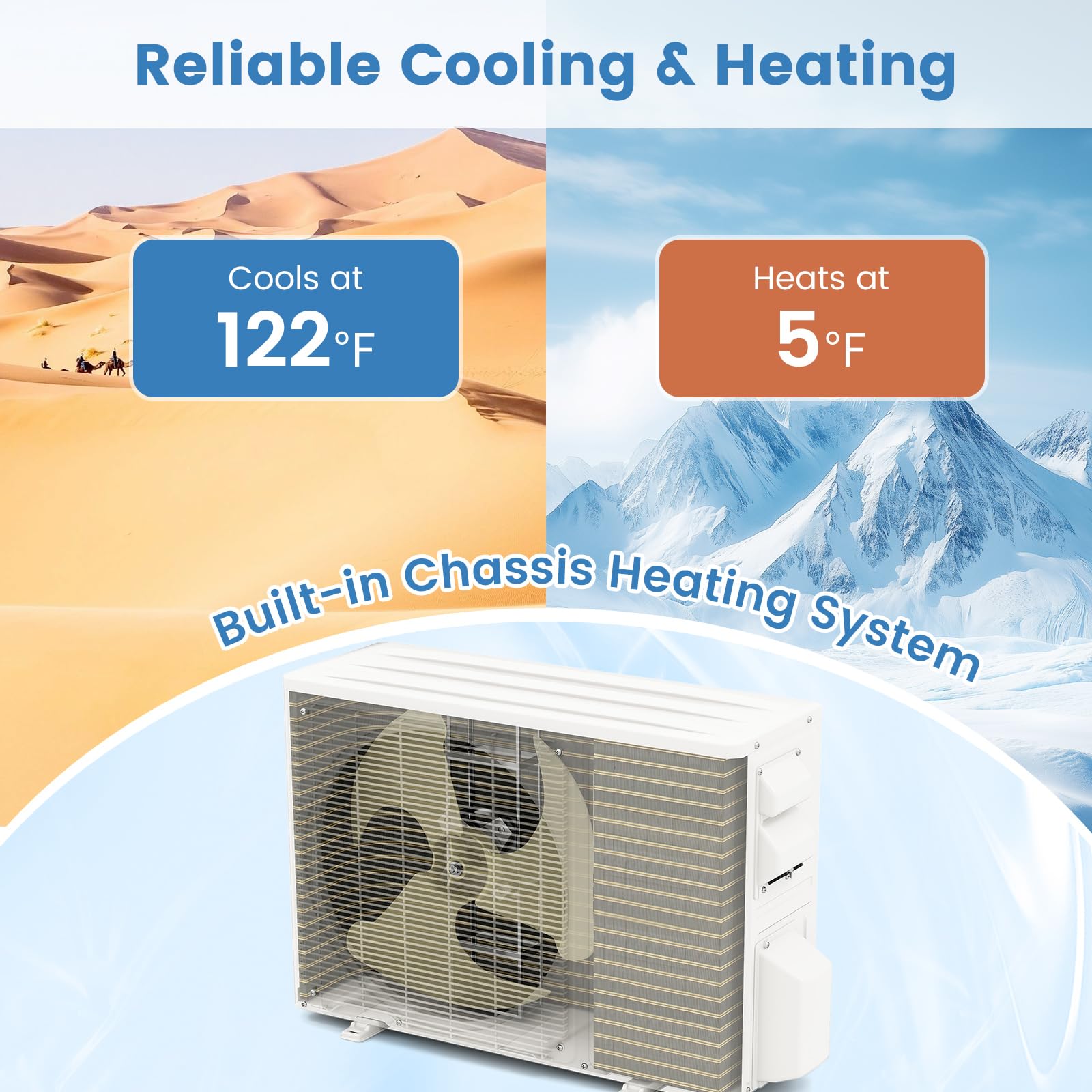

Chassis heating maintains long-lasting performance
Set schedules easily with the 24H on/off timer
4D auto swing to prevent direct blowing
Quiet sleep mode ensures a restful night
Complies with ETL and AHRI

Specifications:

11500 BTU
Color: White
Material: Metal, Aluminum, Copper, AS

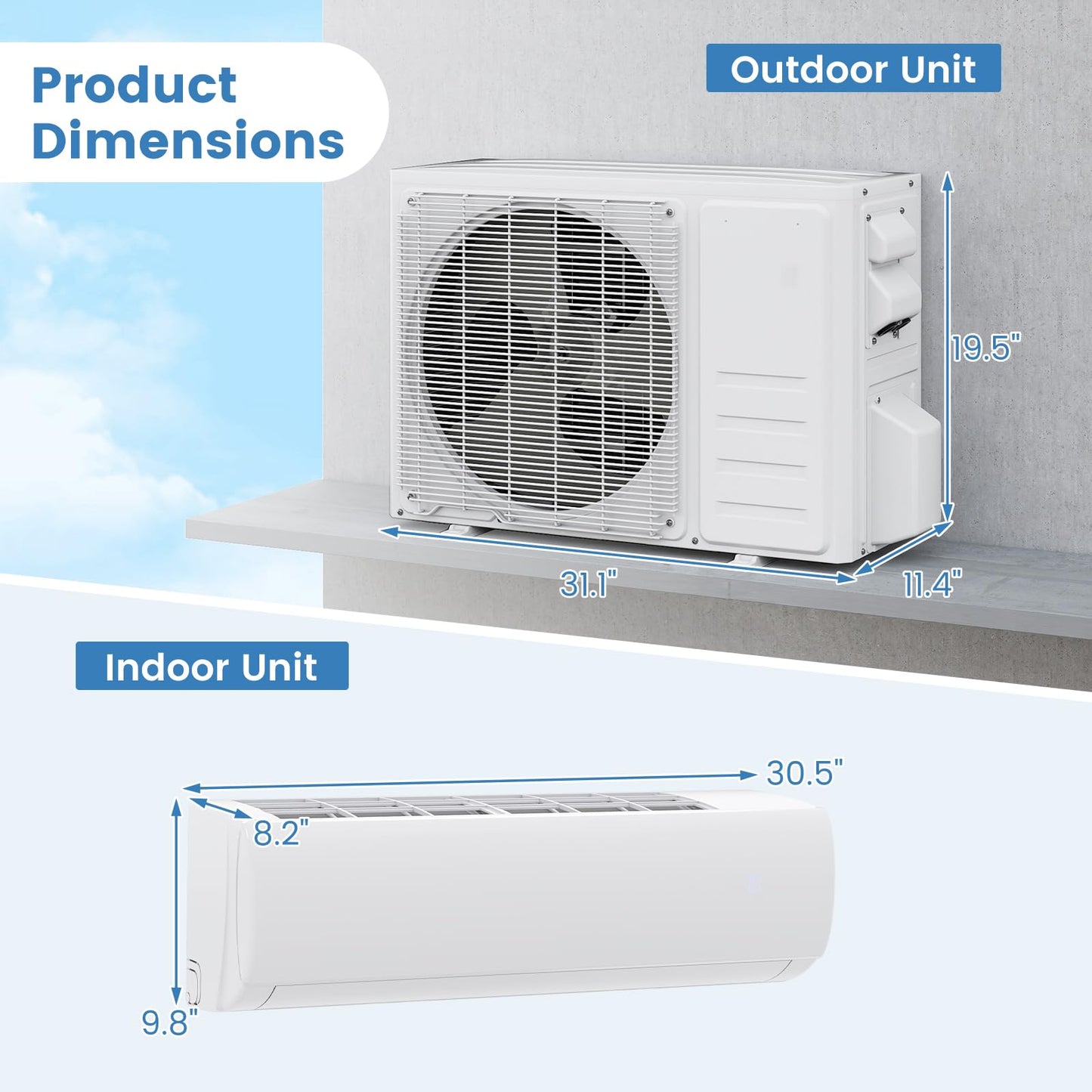

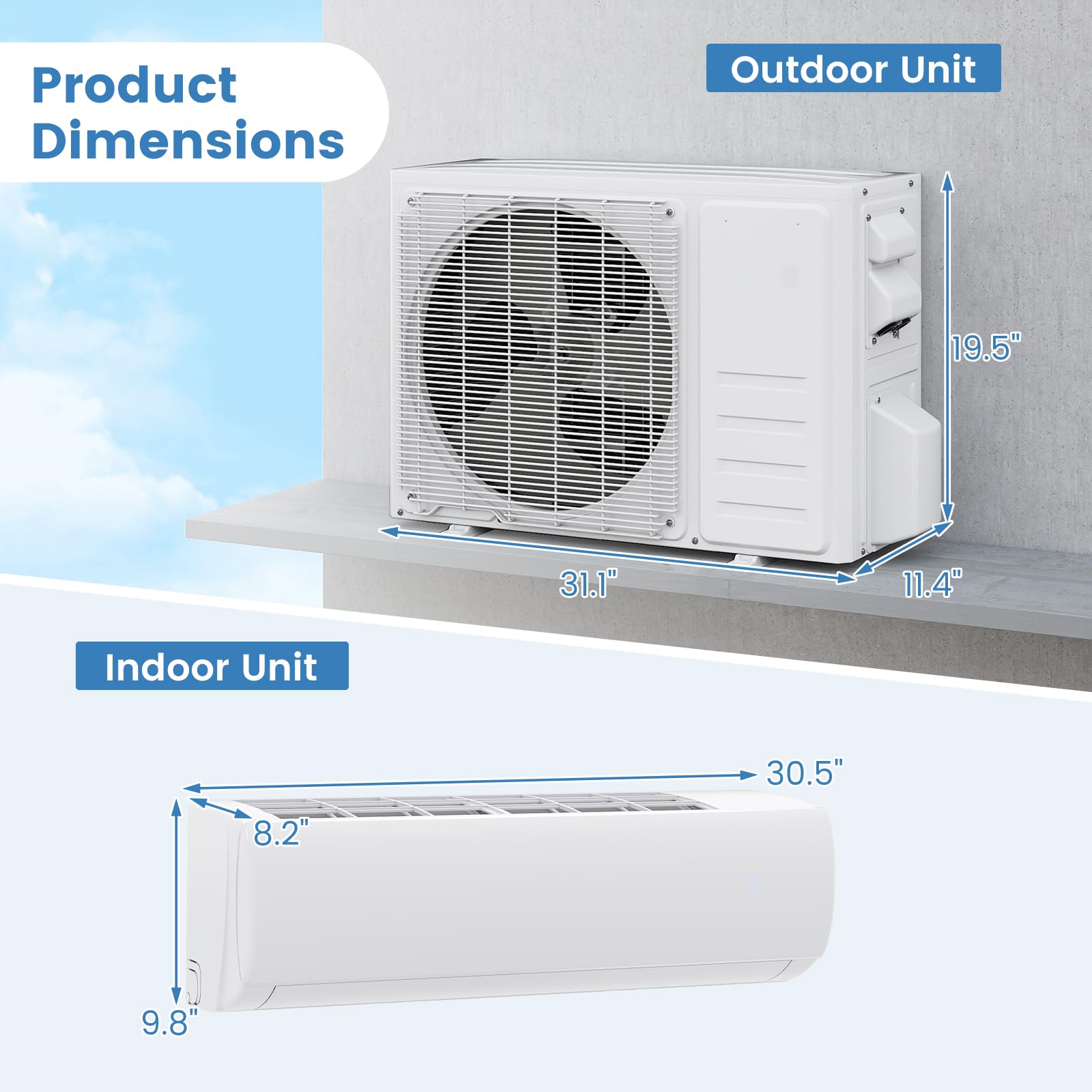

Indoor Unit Dimensions: 30.5" x 9.8" x 8.2"/77.5 x 25 x 20.7 cm (L x W x H)
Outdoor Unit Dimensions: 31.1" x 11.4" x 19.5"/79 x 29 x 49.5 cm (L x W x H)
Diameter of Air Pipe: 3/8" (9.52 mm)
Diameter of Liquid Pipe: 1/4" (6.35 mm)
Diameter of Drain Pipe: 0.67"/16.9 mm
Max Remote Control Distance: 39 ft/12 m
Voltage: 115V~/60Hz
Min. Circuit Ampacity: 18A
Cooling Capacity: 11500 BTU
Heating Capacity: 11500 BTU
Cooling Power: 1180W
Heating Power: 1005W
Coverage Area: 750 Sq.Ft/70㎡
Air Flow Volume: 276 CFM/470 m³/h
Dehumidifying Capacity: 66 Pints/Day (31.2 L/Day)
Temperature Setting Range: 60℉~88℉/ 16℃~31℃
Refrigerant: R32
SEER2: 17
HSPF2: 9.5
Indoor Noise Level: 29 dB
Outdoor Noise Level: 53 dB
Net Weight of Indoor Unit: 20.5 lbs/9.5 kg
Net Weight of Outdoor Unit: 54 lbs/24.5 kg

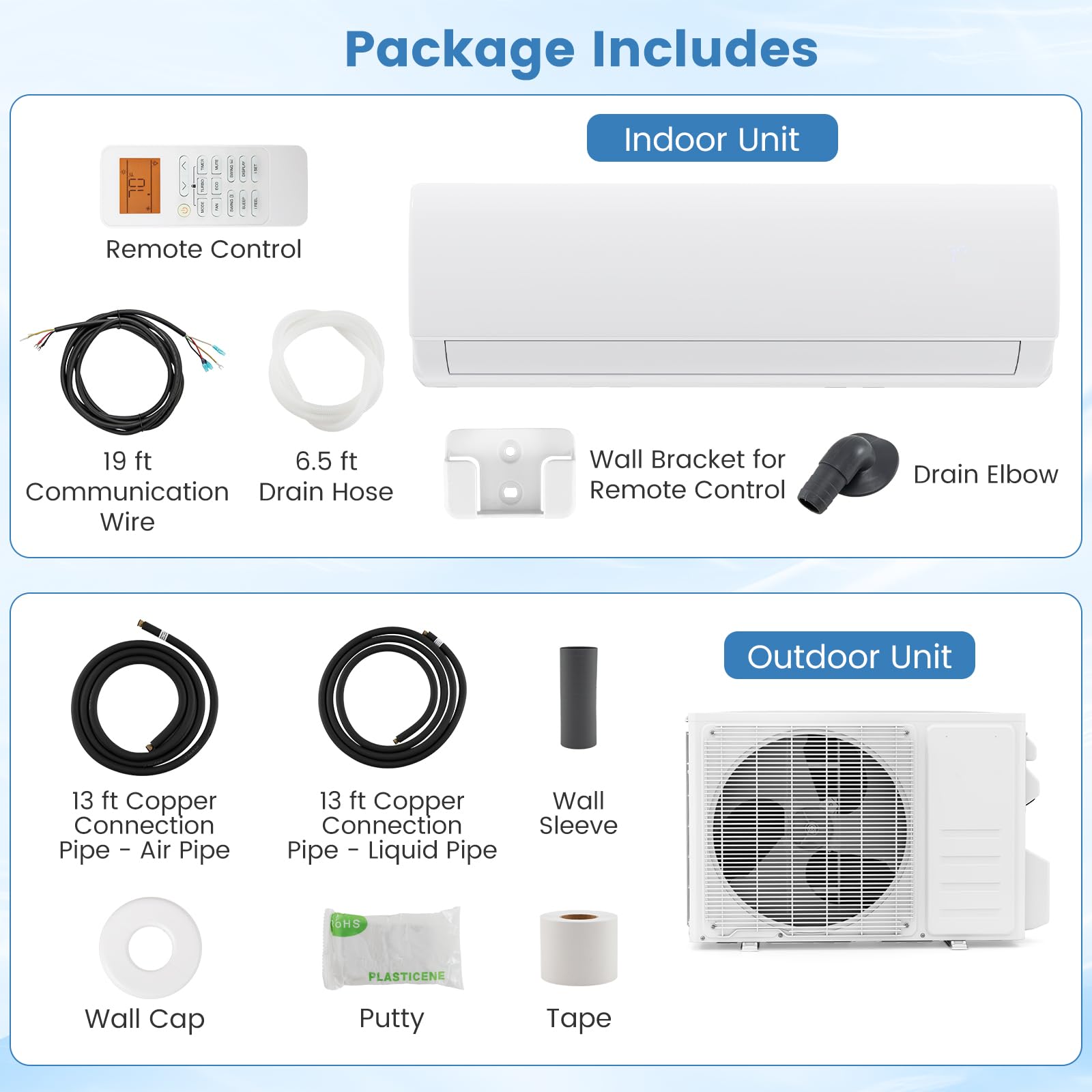

Package Includes:
1 x Indoor Unit
1 x Outdoor Unit
1 x 13 ft Copper Connection Pipe - Air Pipe
1 x 13 ft Copper Connection Pipe - Liquid Pipe
1 x 5.8 m/19 ft Communication Wire
1 x 2 m/6.5 ft Drain Hose
1 x Remote Control
1 x Wall Bracket for Remote Control
1 x Wall Sleeve
1 x Wall Cap
1 x Drain Elbow
1 x Tape
1 x Putty
1 x User Guide

11500 BTU

Color: White
Material: Metal, Aluminum, Copper, AS
Indoor Unit Dimensions: 30.5" x 9.8" x 8.2"/77.5 x 25 x 20.7 cm (L x W x H)
Outdoor Unit Dimensions: 30.9" x 11.4" x 19.7"/78.5 x 29 x 50 cm (L x W x H)
Diameter of Air Pipe: 3/8" (9.52 mm)
Diameter of Liquid Pipe: 1/4" (6.35 mm)
Diameter of Drain Pipe: 0.67"/16.9 mm
Max Remote Control Distance: 39 ft/12 m
Voltage: 208/230V~/60Hz
Min. Circuit Ampacity: 11A
Cooling Capacity: 11500 BTU
Heating Capacity: 11500 BTU
Cooling Power: 1170W
Heating Power: 1100W
Coverage Area: 750 Sq.Ft/70㎡
Air Flow Volume: 294 CFM/500 m³/h
Dehumidifying Capacity: 66 Pints/Day (31.2 L/Day)
Temperature Setting Range: 60℉~88℉/ 16℃~31℃
Refrigerant: R32
SEER2: 17
HSPF2: 8.3
Indoor Noise Level: 33 dB
Outdoor Noise Level: 55 dB
Net Weight of Indoor Unit: 20 lbs/9 kg
Net Weight of Outdoor Unit: 53.5 lbs/24 kg
Package Includes:
1 x Indoor Unit
1 x Outdoor Unit
1 x 13 ft Copper Connection Pipe - Air Pipe
1 x 13 ft Copper Connection Pipe - Liquid Pipe
1 x 5.8 m/19 ft Communication Wire
1 x 2 m/6.5 ft Drain Hose
1 x Remote Control
1 x Wall Bracket for Remote Control
1 x Wall Sleeve
1 x Wall Cap
1 x Drain Elbow
1 x Tape
1 x Putty
1 x User Guide

17000 BTU

Color: White
Material: Metal, Aluminum, Copper, AS
Indoor Unit Dimensions: 35.8" x 11.5" x 8.9"/91 x 29.2 x 22.5 cm (L x W x H)
Outdoor Unit Dimensions: 32.1" x 11.8" x 21.5"/81.5 x 30 x 54.5 cm (L x W x H)
Diameter of Air Pipe: 3/8" (9.52 mm)
Diameter of Liquid Pipe: 1/4" (6.35 mm)
Diameter of Drain Pipe: 0.67"/16.9 mm
Max Remote Control Distance: 39 ft/12 m
Voltage: 208/230V~/60Hz
Min. Circuit Ampacity: 12A
Cooling Capacity: 17000 BTU
Heating Capacity: 16500 BTU
Cooling Power: 1770W
Heating Power: 1440W
Coverage Area: 1250 Sq.Ft/116㎡
Air Flow Volume: 412 CFM/700 m³/h
Dehumidifying Capacity: 81 Pints/Day (38.4 L/Day)
Temperature Setting Range: 60℉~88℉/ 16℃~31℃
Refrigerant: R32
SEER2: 17
HSPF2: 8.5
Indoor Noise Level: 32 dB
Outdoor Noise Level: 57 dB
Net Weight of Indoor Unit: 24 lbs/11 kg
Net Weight of Outdoor Unit: 60.5 lbs/27.5 kg
Package Includes:
1 x Indoor Unit
1 x Outdoor Unit
1 x 13 ft Copper Connection Pipe - Air Pipe
1 x 13 ft Copper Connection Pipe - Liquid Pipe
1 x 5.8 m/19 ft Communication Wire
1 x 2 m/6.5 ft Drain Hose
1 x Remote Control
1 x Wall Bracket for Remote Control
1 x Wall Sleeve
1 x Wall Cap
1 x Drain Elbow
1 x Tape
1 x Putty
1 x User Guide

23000 BTU

Color: White
Material: Metal, Aluminum, Copper, Plastic
Indoor Unit Dimensions: 39.5" x 12.4" x 9.3"/100.2 x 31.5 x 23.7 cm (L x W x H)
Outdoor Unit Dimensions: 34.3" x 13.8" x 23.6"/87.1 x 35 x 60 cm (L x W x H)
Diameter of Air Pipe: 1/2" (12.7mm)
Diameter of Liquid Pipe: 1/4" (6.35 mm)
Diameter of Drain Pipe: 0.67"/16.9 mm
Max Remote Control Distance: 39 ft/12 m
Voltage: 208/230V~/60Hz
Min. Circuit Ampacity: 17A
Cooling Capacity: 23000 BTU
Heating Capacity: 22400 BTU
Cooling Power: 2365W
Heating Power: 1900W
Coverage Area: 1500 Sq.Ft/139㎡
Air Flow Volume: 676 CFM/1150 m³/h
Dehumidifying Capacity: 122 Pints/Day (57.6 L/Day)
Temperature Setting Range: 60℉~88℉/ 16℃~31℃
Refrigerant: R32
SEER2: 17
HSPF2: 9.5
Indoor Noise Level: 37 dB
Outdoor Noise Level: 56 dB
Net Weight of Indoor Unit: 29 lbs/13 kg
Net Weight of Outdoor Unit: 74.5 lbs/34 kg
Package Includes:
1 x Indoor Unit
1 x Outdoor Unit
1 x 13 ft Copper Connection Pipe - Air Pipe
1 x 13 ft Copper Connection Pipe - Liquid Pipe
1 x 5.8 m/19 ft Communication Wire
1 x 2 m/6.5 ft Drain Hose
1 x Remote Control
1 x Wall Bracket for Remote Control
1 x Wall Sleeve
1 x Wall Cap
1 x Drain Elbow
1 x Tape
1 x Putty
1 x User Guide
