Enjoy ultimate comfort with our 18000 BTU mini split air conditioner! This high-efficiency inverter mini split AC system efficiently regulates temperature in rooms up to 1250 sq. ft, boasting an impressive 19 SEER2 and 9 HSPF2. It cools down to 60℉ and heats up to 90℉, ensuring year-round comfort. More than just an air conditioner, it functions as a heater, dehumidifier, and fan. Other features such as sleep mode, ECO mode, 24-hour timer, remote control, child lock, 4D auto swing, chassis electrical heating and self-cleaning offer ultimate convenience and security. Plus, with whisper-quiet operation, you can enjoy a peaceful and comfortable atmosphere, whether you’re working, sleeping, or relaxing at home.
Features:
4 in 1 design for all-season comfort, including cool, heat, dry and fan
Comes with a handy remote control for easy operation
Multiple modes and speeds for customized climate control
Built-in chassis electrical heating for consistent operation
Inverter technology reduces power consumption
Powerful heating & cooling for large spaces
23 dB quiet operation ensures restful nights
24-hour timer provides flexible scheduling
4D airflow effectively avoids direct blowing
Self-cleaning function for better air quality
Washable filters ensure effortless cleaning
Auto defrost for long-lasting performance
Specifications:
Color of Indoor Unit: White
Color of Outdoor Unit: White
Material: Metal, Aluminum, Plastic
Indoor Unit Size: 37.6” x 8.96” x 12.64”/94 x 22.4 x 31.6 cm (L x W x H)
Outdoor Unit Size: 30.94” x 11.97” x 21.89”/78.6 x 30.4 x 55.6 cm (L x W x H)
Cooling Capacity: 18000 BTU
Heating Capacity: 18700 BTU
Heat Pump: 1.5 Ton
Voltage: 208-230V~60Hz/1PH
Max. Input Power: 2200W
Max. Input Current: 12A
Coverage Area: 1250 sq.ft.
Air Flow Volume: 500 CFM/850 m³/h
Dehumidification Capacity: 81.1 Pints/Day (38.4 L/Day)
Temperature Setting Range: 60℉~90℉/ 16℃~32℃
Refrigerant: R32
SEER2: 19
HSPF2: 9
Indoor Noise Level: 23 dB
Gas Pipe Diameter: 1/2"/12mm
Liquid Pipe Diameter: 1/4"/6.35mm
Drain Hose Diameter: 0.67"/16.9mm
Indoor Unit Net Weight: 23 lbs/11.5 kg
Outdoor Unit Net Weight: 59 lbs/29.5 kg

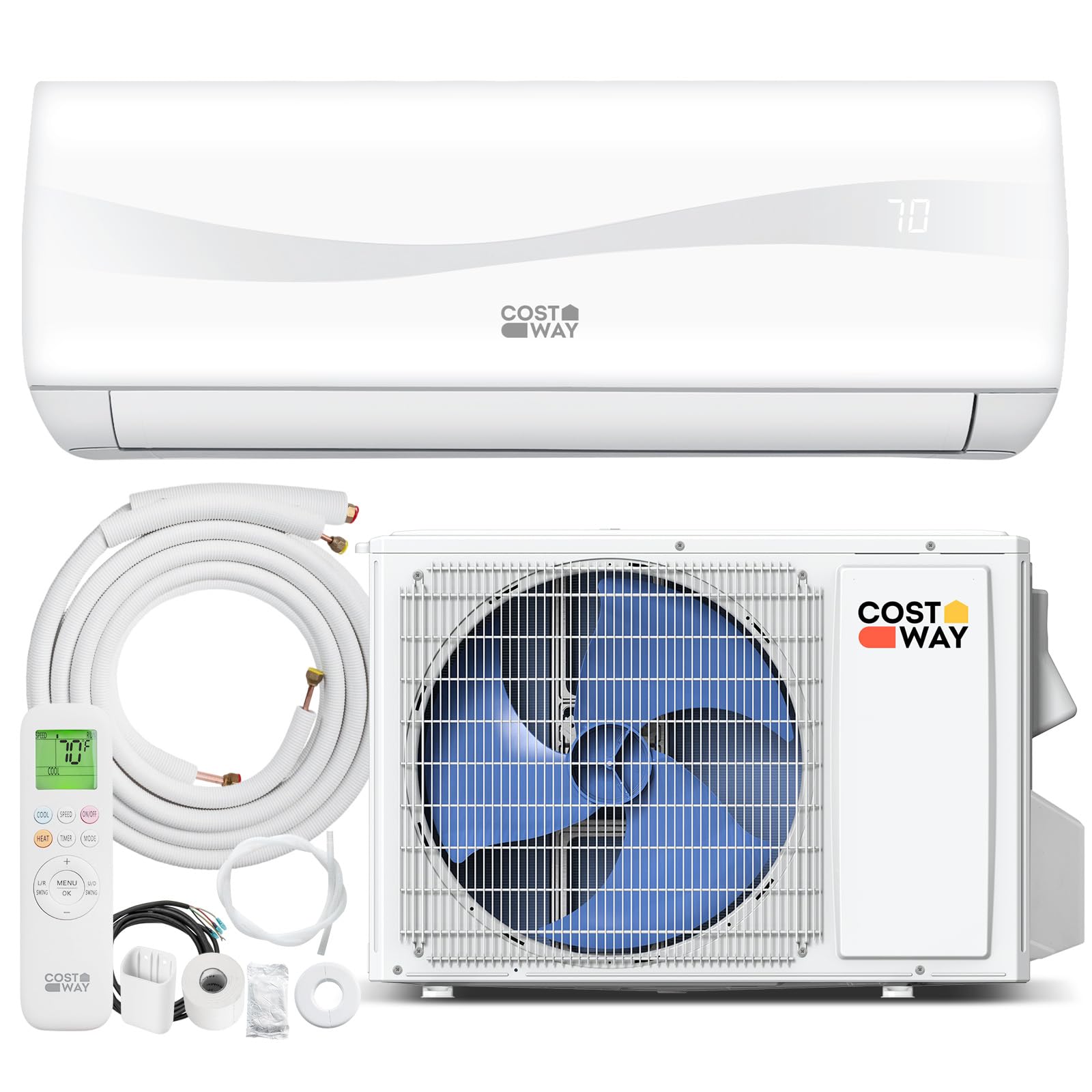

Package List:
1 x Indoor Unit
1 x Outdoor Unit
1 x 4 m/13 ft Copper Connection Pipe - Liquid Pipe
1 x 4 m/13 ft Copper Connection Pipe - Gas Pipe
1 x 4.5 m/15 ft Communication Wire
1 x 2 m/6.5 ft Drain Hose
1 x Remote Control
1 x Remote Control Holder
1 x Tape
1 x Wall Cap
1 x Putty
1 x User Guide
